WEG Motors

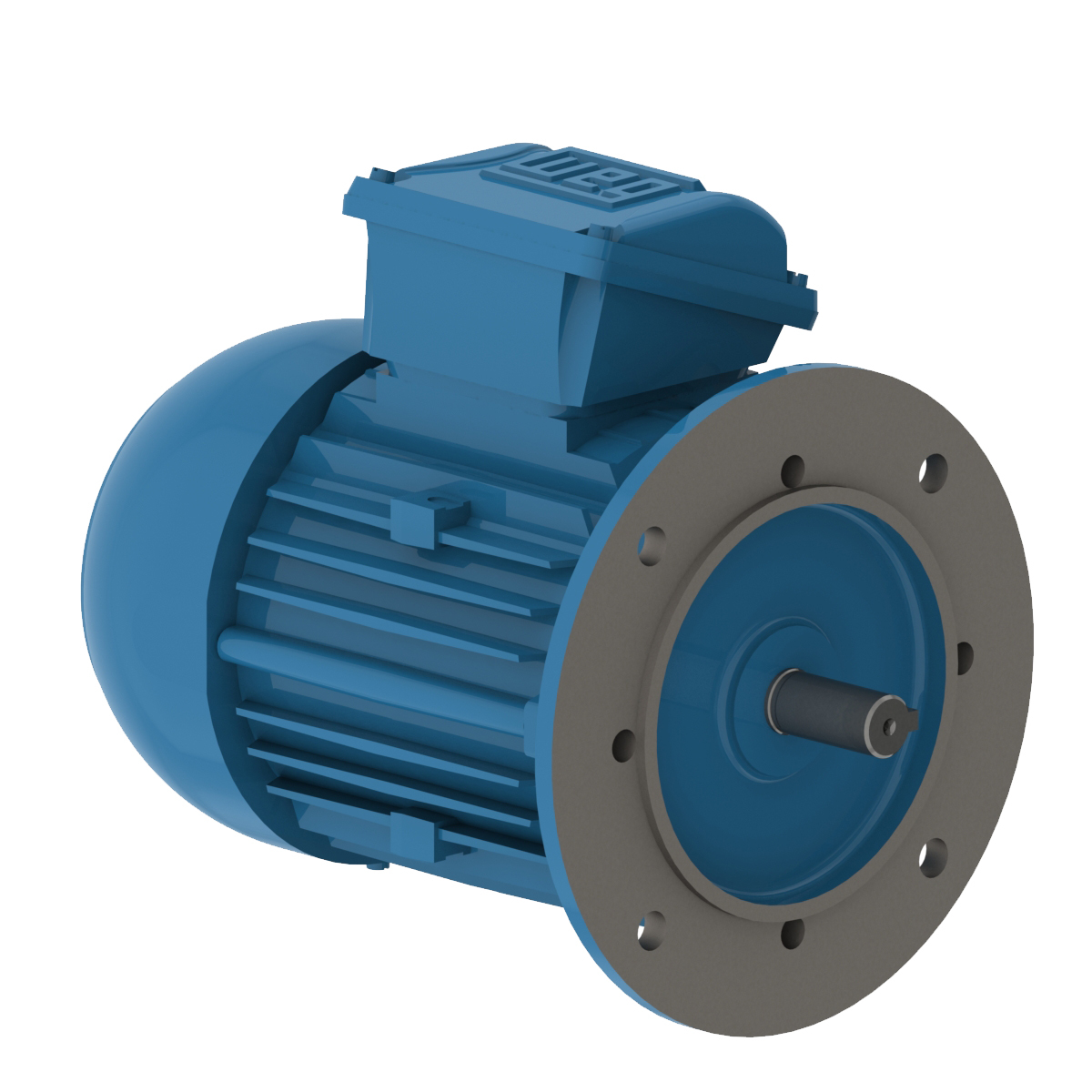

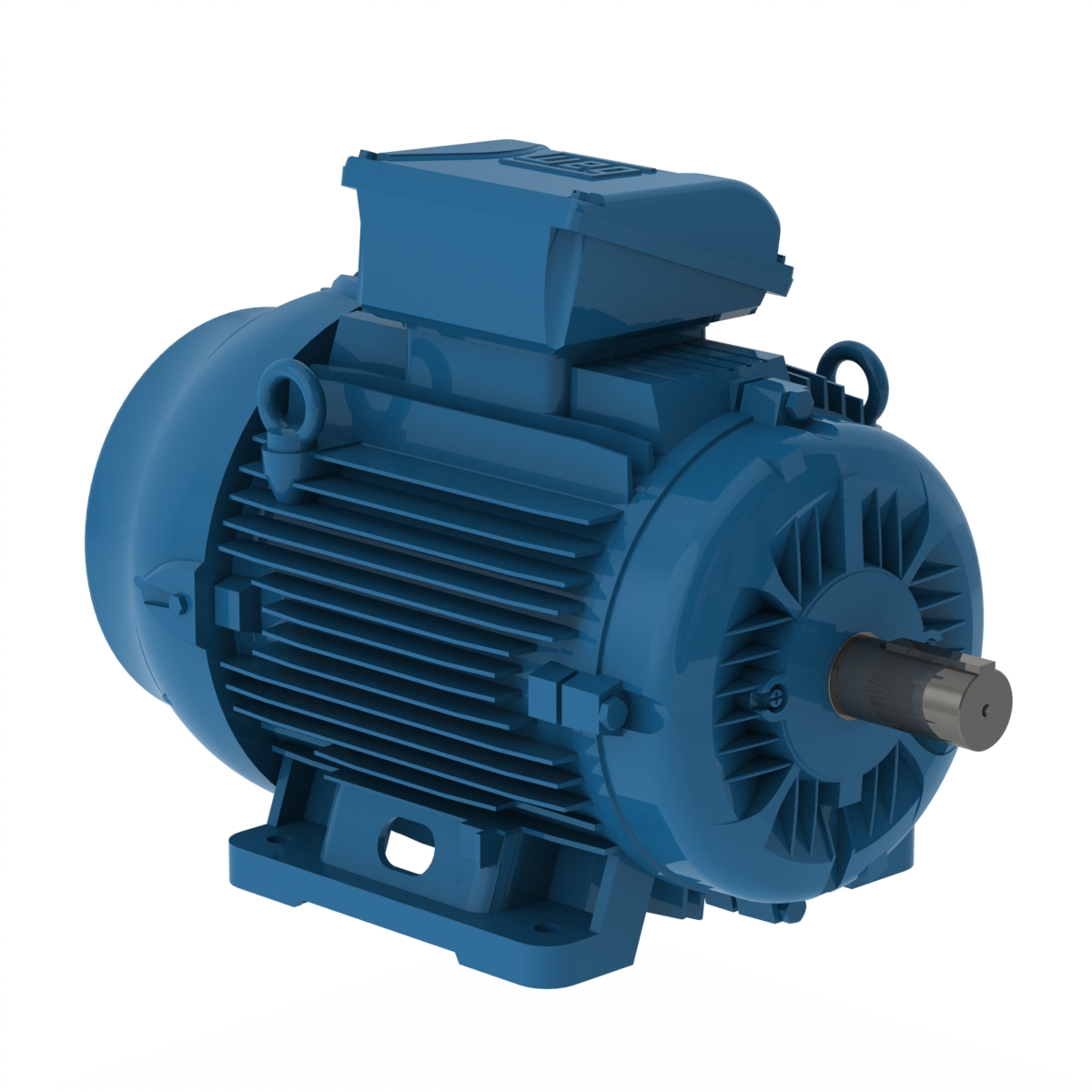

We stock 2 and 4 pole motors, foot and flange mounted up to 250kW. All our stock is held to WIMES Specification and availability with immediate 24/7 delivery.
Quantum’s unique solution ensures that, you as an engineer can have a market leading, high efficiency WEG motors in transit within 30 minutes, with a known delivery time to your site, any time day or night, 365 days a year.
Be a motor expert in just 60 minutes with this FREE guide!
Water Industry Motor Electrical Specification
- Pt-100 2-wire in stator winding, 1 per phase
- PTC – thermistors (3 in series), 150°C, in stator winding. SPM compatible nipples for vibration measurement. Dual voltage heating element
- Painting system C3M acc. to ISO 12944-5:2007. Internal & External earthing bolt
- Stainless steel rating plate
- Metal fan cover
- Metal fan cover
About this product
- Bearings regreasable via grease nipples
- 2Z bearings greased for life at both ends
- Locked D-end
- Lubrication information plate
- Vibration acc. to Grade A (IEC 60034-14)
- Individual serial number
- Jacking bolts for foot mounted motors
Quantum Prime - 24/7 Motor Delivery Solution
Quantum Controls providing you with instant access to ABB Motors.
Enquire about Prime
24/7 Direct telephone access to expert motor engineers
No Order Numbers needed
Order placed with logistics company. No need to wait until our offices are open
WEG Motor Stock
Delivery prices to be confirmed*
Filter
| Part Number | Kw | Poles | Mounting | Price | Stock | Data Sheet | Schematic Drawing | Type | Order Online |
|---|---|---|---|---|---|---|---|---|---|
| WEG 0.75kW 2P B5 IE3 WIMES | 0.75 | 2 | B5 | £196.32 | 2 | View | View | Order online | |
| WEG 11kW 2P B3 IE3 WIMES | 11 | 2 | B3 | £832.55 | 1 | View | View | Order online | |
| WEG 15kW 2P B3 IE3 WIMES | 15 | 2 | B3 | £886.70 | 1 | View | View | Order online | |
| WEG 15kW 4P B3 IE3 WIMES | 15 | 4 | B3 | £925.80 | 1 | View | View | Order online | |
| WEG 18.5kW 2P B3 IE3 WIMES | 18.5 | 2 | B3 | £979.20 | 1 | View | View | Order online | |
| WEG 18.5kW 4P B3 IE3 WIMES | 18.5 | 4 | B3 | £1,241.36 | 1 | View | View | Order online | |
| WEG 18.5kW 4P B5 IE3 WIMES | 18.5 | 4 | B5 | £1,284.40 | 1 | View | View | Order online | |
| WEG 2.2kW 2P B3 IE3 WIMES | 2.2 | 2 | B3 | £248.28 | 1 | View | View | Order online | |
| WEG 2.2kW 2P B5 IE3 WIMES | 2.2 | 2 | B5 | £254.52 | 1 | View | View | Order online | |
| WEG 2.2kW 4P B3 IE3 WIMES | 2.2 | 4 | B3 | £284.52 | 1 | View | View | Order online | |
| WEG 22kW 4P B3 IE3 WIMES | 22 | 4 | B3 | £1,338.47 | 1 | View | View | Order online | |
| WEG 30kW 4P B3 IE3 WIMES | 30 | 4 | B3 | £1,724.28 | 1 | View | View | Order online | |
| WEG 3kW 2P B3 IE3 WIMES | 3 | 2 | B3 | £298.00 | 1 | View | View | Order online | |
| WEG 3kW 2P B5 IE3 WIMES | 3 | 2 | B5 | £307.69 | 1 | View | View | Order online | |
| WEG 3kW 4P B3 IE3 WIMES | 3 | 4 | B3 | £317.83 | 1 | View | View | Order online | |
| WEG 3kW 4P B5 IE3 WIMES | 3 | 4 | B5 | £327.51 | 1 | View | View | Order online | |
| WEG 4kW 4P B3 IE3 WIMES | 4 | 4 | B3 | £368.71 | 1 | View | View | Order online | |
| WEG 5.5kW 4P B3 IE3 WIMES | 5.5 | 4 | B3 | £466.41 | 1 | View | View | Order online | |
| WEG 7.5kW 2P B3 IE3 WIMES | 7.5 | 2 | B3 | £473.80 | 1 | View | View | Order online | |
| WEG 7.5kW 4P B5 IE3 WIMES | 7.5 | 4 | B5 | £545.79 | 1 | View | View | Order online | |
| WEG 55kW 4P B5 IE3 WIMES | 55 | 4 | B5 | £3,184.21 | 1 | View | View | Order online | |
| WEG 45kW 4P B3 IE3 WIMES | 45 | 4 | B3 | £2,571.38 | 1 | View | View | Order online | |
| WEG 55kW 4P B3 IE3 WIMES | 55 | 4 | B3 | £3,088.82 | 1 | View | View | Order online | |
| WEG 75kW 2P B3 IE3 WIMES | 75 | 2 | B3 | £4,334.51 | 1 | View | View | Order online | |
| WEG 0.37kW 4P B5 IE3 WIMES | 0.37 | 4 | B5 | £155.16 | 1 | View | View | Order online | |
| WEG 200kW 4P B5 IE3 WIMES | 200 | 4 | B3 | £10,755.55 | 1 | View | View | Order online | |
| WEG 37kW 4P B3 IE3 WIMES | 37 | 4 | B3 | £2,213.75 | 1 | View | View | Order online | |
| WEG 0.37kW 2P B5 IE3 WIMES | 0.37 | 2 | B5 | £115.64 | 1 | View | View | Order online |
Motor order form/order instruction
Useful Links
For more information, click to download and view the WEG Motors Catalogs:
Help and Advice
Motor Windings: What are the differences?
Motor windings can take many shapes or forms. However 3-phase distributed windings are the most commonly used in AC motors for industrial applications, which will be the focus of this article. The discussion which follows is equally applicable to the use of this type of winding in induction motors or in permanent magnet synchronous motors.
Motor Windings: What are the differences?Repair or replace? The Facts About Motor Rewinds
No-one wants to think about a motor breaking down, but when it does you have two choices: repair it or replace it with a new one.
Repair or replace? The Facts About Motor RewindsEnquire Here
Fill in the enquiry form for a no obligation quotation.
Or call us on 01661 835 566
In case of emergency call us on 0330 9000 247
